cetakan_token

190180 rows


Columns

Column Type Size Nulls Auto Default Children Parents Comments
id serial 10 √ nextval('cetakan_token_id_seq'::regclass)
cetakan.id cetakan_token_id_cetakan_id_fk R
urut int4 10 null
token varchar 50 null
cetakan_logs.print_token cetakan_logs_print_token_cetakan_token_token_fk R
expired_at varchar 255 null
printer_name varchar 2147483647 √ null
paper_name varchar 2147483647 √ null
paper_size varchar 2147483647 √ null
orientation varchar 2147483647 √ null
paper_id int4 10 √ null
attempts int4 10 0
tipe varchar 50 null
created_by int4 10 null
pegawai.id cetakan_token_created_by_pegawai_id_fk R
created_at timestamp 29,6 √ now()
updated_by int4 10 null
pegawai.id cetakan_token_updated_by_pegawai_id_fk R
updated_at timestamp 29,6 √ now()
deleted_by int4 10 √ null
deleted_at timestamp 29,6 √ null
deleted_reason text 2147483647 ''::text

Indexes

Constraint Name Type Sort Column(s)
cetakan_token_id_urut_pk Primary key Asc/Asc id + urut
cetakan_token_token_unique Must be unique Asc token

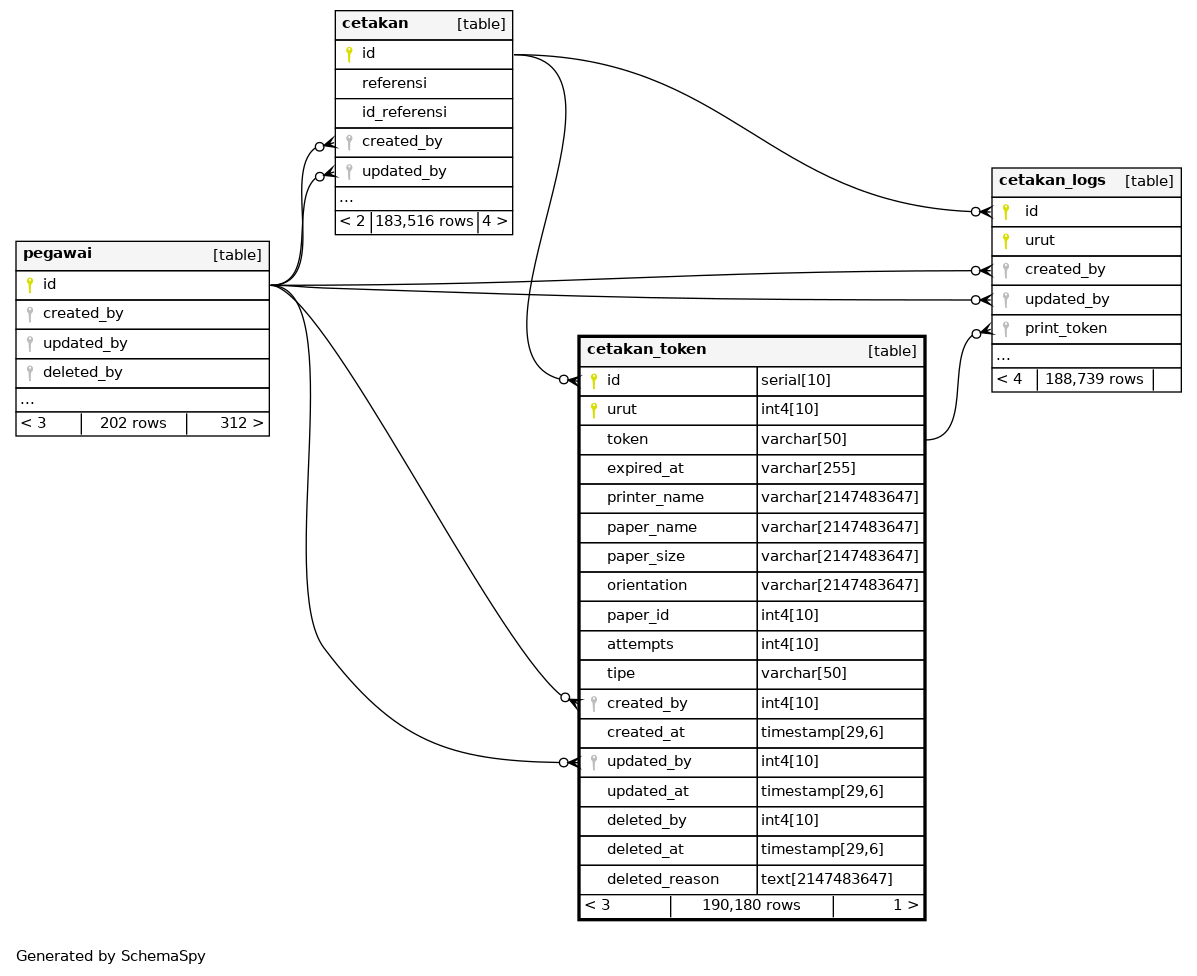

Relationships

Close relationships within degrees of separation
